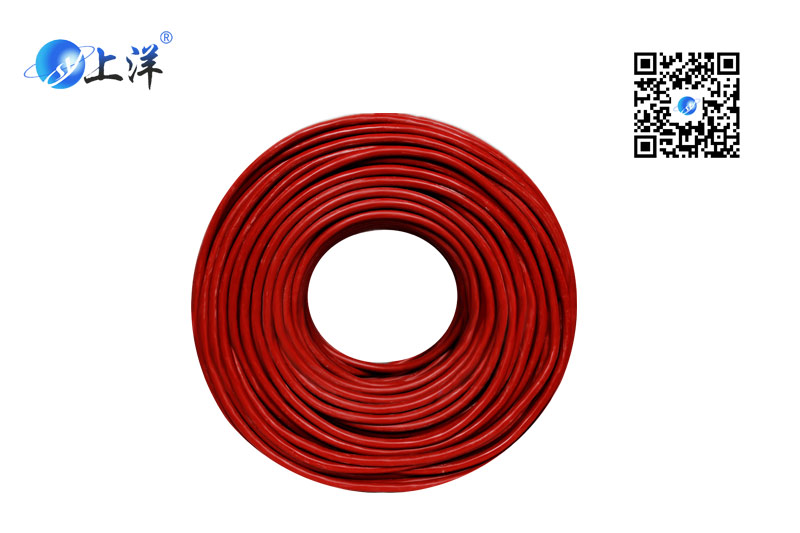

硅橡膠絕緣高溫電纜 200℃ YGC

Home > Products >
硅橡膠絕緣高溫電纜 200℃ YGC

Executive standard: Q / irmv2 － 2008


Product characteristics:


1. Rated voltage: 450 / 750V


2. Working temperature: - 60 ~ + 200 ℃

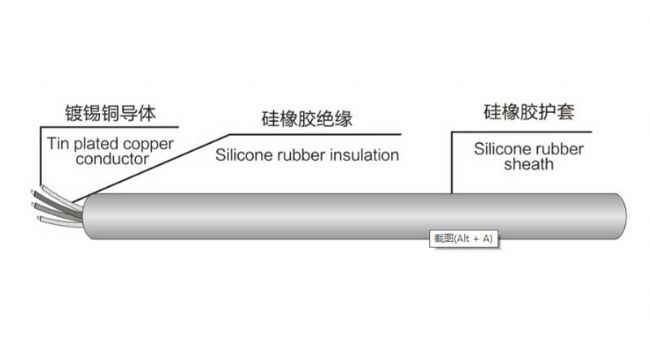

3. Conductor: stranded tinned copper wire


4. Insulation: silicone rubber


5. Sheath: silicone rubber


6. Color: Red / yellow / Blue / White / Black / yellow green / Brown / green, etc


Features / uses:


It can be used in long-term humid environment, with excellent electrical performance, waterproof and mold resistance. Excellent bending performance, the minimum bending radius is 16 times of the outer diameter of the cable, and it can be moved. It is used in various mobile motors with AC rated voltage of 450 / 750V and below, steel, aviation, power plant, petrochemical and other high-temperature environments.


Delivery requirements:


According to the contract agreement of both parties, short delivery of no less than 10m is allowed. The quantity shall not exceed 10% of the total delivery length.


Specification structure and technical parameters:


Technical parameters of YGC products (1)

芯數×截面
（mm2）

導體結構
根數/線徑

絕緣厚度

完成外徑

護套厚度
（mm）

平均外徑
（mm）

20 ℃時導體電阻≤
 （Ω /KM ）

2 × 4

56/0.30

0.70

4.10

1.40

11.0

5.09

3 × 4

56/0.30

0.70

4.10

1.60

12.0

5.09

4 × 4

56/0.30

0.70

4.10

1.80

13.5

5.09

5 × 4

56/0.30

0.70

4.10

1.80

14.6

5.09

6 × 4

56/0.30

0.70

4.10

1.80

16.0

5.09

7 × 4

56/0.30

0.70

4.10

1.80

16.0

5.09

10 × 4

56/0.30

0.70

4.10

2.20

20.0

5.09

12 × 4

56/0.30

0.70

4.10

2.40

22.0

5.09

2 × 6

84/0.30

0.70

4.90

1.60

13.0

3.39

3 × 6

84/0.30

0.70

4.90

1.60

13.8

3.39

4 × 6

84/0.30

0.70

4.90

1.80

15.4

3.39

5 × 6

84/0.30

0.70

4.90

1.80

16.8

3.39

6 × 6

84/0.30

0.70

4.90

2.00

18.8

3.39

7 × 6

84/0.30

0.70

4.90

2.00

18.8

3.39

10 × 6

84/0.30

0.70

4.90

2.20

23.4

3.39

2 × 10

84/0.40

1.0

6.60

1.80

17.0

1.95

3 × 10

84/0.40

1.0

6.60

1.80

18.0

1.95

4 × 10

84/0.40

1.0

6.60

2.00

20.0

1.95

5 × 10

84/0.40

1.0

6.60

2.40

22.8

1.95

2 × 16

126/0.40

1.2

8.40

2.50

21.8

1.24

3 × 16

126/0.40

1.2

8.40

2.60

23.2

1.24

4 × 16

126/0.40

1.2

8.40

2.60

25.6

1.24

5 × 16

126/0.40

1.2

8.40

2.80

28.2

1.24

2 × 25

196/0.40

1.30

10.10

2.6

25.4

0.795

3 × 25

196/0.40

1.30

10.10

2.6

27.0

0.795

4 × 25

196/0.40

1.30

10.10

2.6

29.6

0.795

5 × 25

196/0.40

1.30

10.10

2.6

32.80

0.795

2 × 35

494/0.30

1.4

11.5

2.4

28.0

0.565

3 × 35

494/0.30

1.4

11.5

2.6

30.0

0.565

4 × 35

494/0.30

1.4

11.5

2.6

33.0

0.565

3*50

396/0.40

1.6

14.0

2.8

36.0

0.393

4 × 50

396/0.40

1.6

14.0

2.8

39.6

0.393

3 × 70

551/0.40

1.6

15.6

3.0

10.0

0.277

3 × 95

760/0.40

1.8

18.2

3.2

45.8

0.210

3 × 120

608/0.50

2.0

20.0

3.6

50.6

0.164

3 × 150

760/0.50

2.2

22.4

3.8

56.2

0.132

3 × 185

925/0.50

2.4

24.8

4.0

61.8

0.108

3 × 240

1221/0.50

2.6

28.2

4.2

69.4

0.082

YGC產品技術參數（2）

芯數×截面
（mm2）

導體結構
根數/線徑

主線芯外徑
（mm）

地線芯外徑
（mm）

護套厚度
（mm）

平均外徑
（mm）

3×1.5+1×1

48/0.20

32/0.20

2.80

2.60

1.4

9.50

3×2+1×1.5

40/0.25

48/0.20

3.20

2.80

1.50

10.70

3×2.5+1×1.5

49/0.25

48/0.20

3.50

2.80

1.7

12.0

3×4+1×2.5

56/0.30

49/0.25

4.10

3.50

1.8

13.5

3×6+1×4

84/0.30

56/0.30

4.90

4.10

1.8

15.4

3×10+1×6

84/0.40

84/0.30

6.60

4.90

1.80

19.5

3×16+1×10

126/0.40

84/0.40

8.40

6.60

2.60

24.6

3×25+1×16

196/0.40

126/0.40

10.10

8.40

2.60

28.60

3×35+1×25

494/0.30

196/0.40

11.50

10.10

2.60

32.20

3×50+1×35

396/0.40

194/0.30

14.0

10.10

2.80

37.80

3×70+1×50

551/0.40

396/0.40

15.6

11.5

3.0

42.2

3×95+1×50

760/0.40

396/0.40

18.2

14.0

3.2

48.5

3×120+1×70

608/0.50

551/0.40

20.0

15.6

3.6

53.6

3×150+1×70

760/0.50

551/0.40

22.4

15.6

3.8

58.3

3×150+1×95

760/0.50

760/0.40

22.4

18.2

3.80

60.0

3×185+1×70

925/0.50

551/0.40

24.8

15.6

4.0

64.2

3×185+1×95

925/0.50

760/0.40

24.8

18.2

4.2

65.8

3×240+1×95

1221/0.50

475/0.50

28.2

18.2

4.5

72.8

3×240+1×120

1221/0.50

608/0.50

28.2

20.0

4.5

75.0
