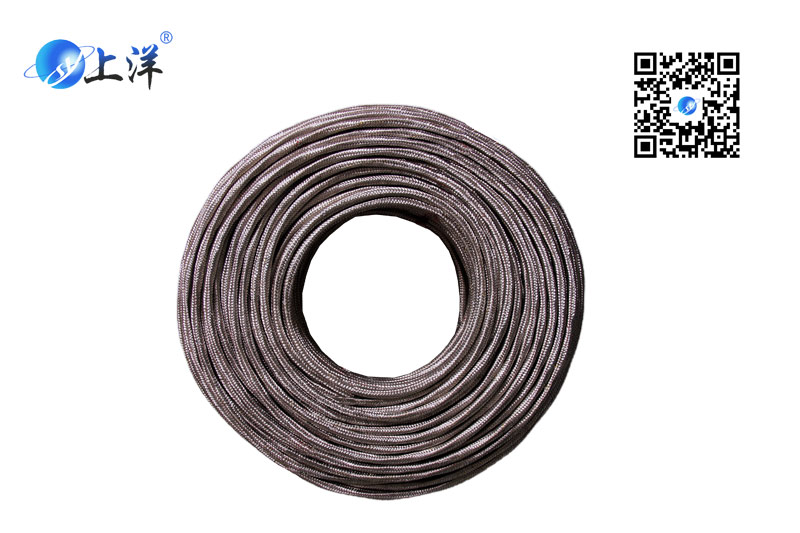

云母耐火高溫電纜500℃ GNPB500

Home > Products >

云母耐火高溫電纜500℃ GNPB500
Rated voltage: 450V / 750V

Working temperature: 500 ℃, 800 ℃

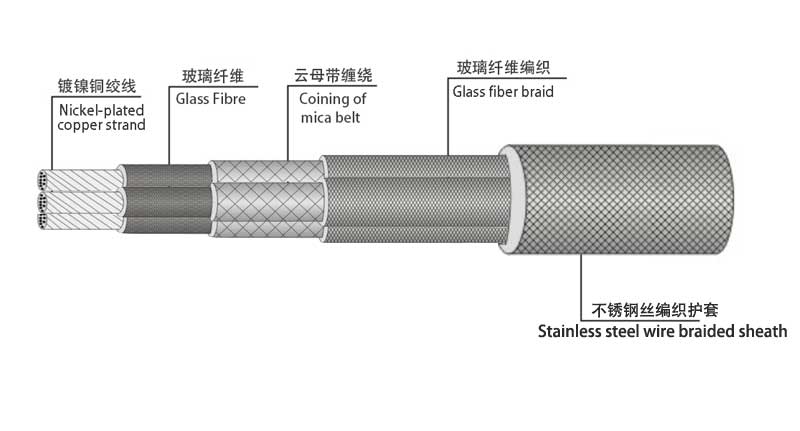

Conductor: bare copper, tinned copper wire, nickel plated copper wire, pure nickel wire stranded

Insulation: glass fiber + mica wrapping + glass fiber weaving

Shield: Copper tinned wire braid

Sheath: glass fiber braiding + gluing

Color: red, yellow, blue, white, black, green, etc

Specification structure technical parameters



標準截面

Standard section

mm2

根數/線徑

Number/diameter

No./mm

最大成纜芯數

Core number in maxmum

耐溫

Temperature resisting

0.5

28/0.15

2-19

500

800

0.75

24/0.20

2-19

1

32/0.20

2-19

1.5

30/0.25

2-19

2.5

49/0.25

2-19

4

56/0.30

2-19

6

84/0.30

2-19

10

84/0.40

2-19

16

126/0.40

2-19

25

196/0.40

2-5

35

276/0.40

2-5

50

396/0.40

2-5

90

360/0.50

2-5

95

475/0.50

2-5

120

608/0.50

2-5
