聚氯乙烯絕緣電線 UL2464

Home > Products >

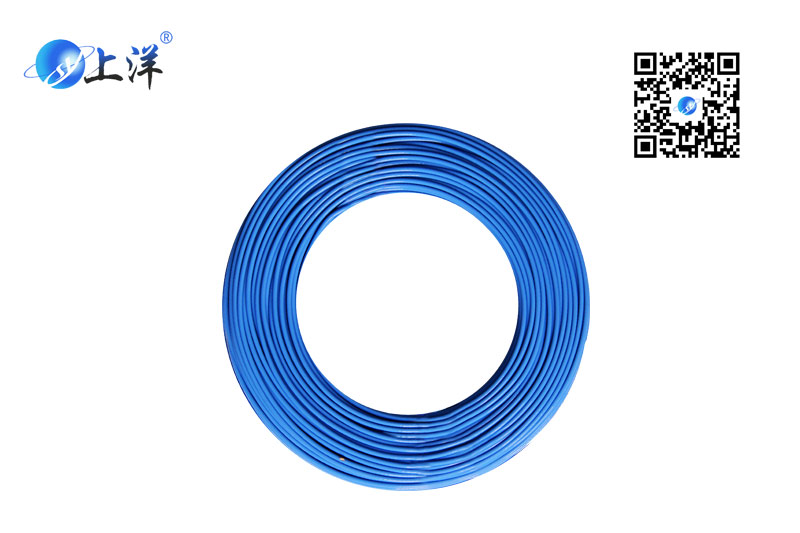

聚氯乙烯絕緣電線 UL2464

Standard: ul7581581

Rated voltage: 300V, rated temperature: 80 ℃

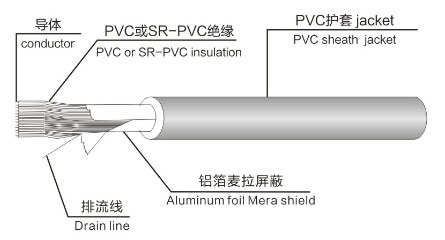

The conductor shall be stranded bare copper or tinned wire

PVC or semi-rigid PVC insulation

Aluminum foil Mylar tape shielding

Stranded tinned or bare copper wire drain line

Tinned or bare soft copper wire braided shield

PVC sheath

It can pass UL vw-1sc and CSA FT1 vertical fire resistance test

Application:

It is applicable to the computer wires conforming to the International Electrotechnical specification (EIA) RS-232 and CAD / CAM

導體 CONDUCTOR				絕緣 INSULATION		屏蔽 SHIELD		護套 JACKET		最大導 體電阻 MAX Resistance At20℃	最小絕緣電阻 Min Insulation Resistance At20℃	耐電壓 Dielectric Strength AC 1 min	標準 長度 Standard length
規格 Spec	線數/線徑	直徑 DIA.	芯數 Cores	標稱厚度 Nom. Thick	標稱外徑 Nom. Dia	鋁箔 Al. Mylar	編織 Braid	標稱厚度 Nom. Thick	標稱外徑 Nom. Dia	最大導 體電阻 MAX Resistance At20℃	最小絕緣電阻 Min Insulation Resistance At20℃	耐電壓 Dielectric Strength AC 1 min	標準 長度 Standard length
AWG	No./mm	mm	No.	mm	mm	mm*mm	No./No. mm	mm	mm	Ω/km	MΩ/km	V	Ft(m)
28	7/0.127	0.38	3	0.25	0.88	A*B	16/4/0.12	0.80	4.20	223.75	10	1500	1000 (305)
			4				16/4/0.12		4.40
			5				16/5/0.12		4.60
			6				16/5/0.12		4.90
			7				16/5/0.12		4.90
			8				16/6/0.12		5.20				656 (200)
			9				16/6/0.12		5.50
			10				16/7/0.12		5.80
			11				16/7/0.12		5.90
			12				16/7/0.12		5.90
			13				16/8/0.12		6.20
			14				16/8/0.12		6.20
			15				16/9/0.12		6.40
			25				24/7/0.12		8.00				492 (150)
			37				24/8/0.12	1.00	8.80
			50				24/9/0.12	1.00	10.00
26	7/0.16	0.48	3	0.25	0.98	A*B	16/5/0.12	0.80	4.40	139.73	10	1500	1000 (305)
			4				16/5/0.12		4.70				1000 (305)
			5				16/5/0.12		5.00				656 (200)
			6				16/6/0.12		5.30
			7				16/6/0.12		5.30
			8				16/6/0.12		5.60
			9				16/6/0.12		6.00
			10				16/6/0.12		6.30
			11				16/6/0.12		6.40
			12				16/6/0.12		6.40
			13				16/7/0.12		6.70
			14				16/7/0.12		6.70
			15				16/7/0.12		7.00
			25				24/8/0.12		8.80				492 (150)
			37				24/9/0.12	1.00	9.70
			50				24/11/0.12	1.00	11.00
24	11/0.16	0.61	2	0.25	1.11	A*B	16/5/0.12	0.80	4.50	93.30	10	1500	1000 (305
			3				16/5/0.12		4.60
			4				16/5/0.12		4.90
			5				16/5/0.12		5.20				656 (200)
			6				16/6/0.12	0.90	5.80
			7				16/6/0.12		5.80
			8				16/6/0.12		6.10
			9				16/6/0.12		6.50
			10				16/6/0.12		6.90
			11				16/6/0.12		7.00
			12				16/6/0.12		7.00
			13				24/7/0.12		7.30
			14				24/7/0.12		7.30
			15				24/7/0.12		7.60
			25				24/9/0.12	1.00	9.40				492 (150)
			37				24/9/0.12		10.40
			50				24/11/0.12		11.90
22	17/0.16	0.76	2	0.25	1.26	A*B	16/5/0.12	0.90	5.00	55.00	10	1500	656 (200)
			3				16/5/0.12		5.30
			4				16/5/0.12		5.60
			5				16/5/0.12		6.00
			6				16/6/0.12	1.00	6.60
			7				16/6/0.12		6.60
			8				16/6/0.12		7.00
			9				16/6/0.12		7.50
			10				16/6/0.12		7.90
			11				16/7/0.12		8.00				492 (150)
			12				16/7/0.12		8.00
			13				24/7/0.12		8.40
			14				24/7/0.12		8.40
			15				24/7/0.12		8.80
			25				24/9/0.12	1.10	10.90
			37				24/9/0.12		12.00
			50				24/11/0.12		13.80

注：

①A*B：厚度*寬度

②厚度：0.025、0.035（mm）

③寬度：8、10、12、18、20……(mm)
